Belajar Kubernetes - Episode 33 - Pengenalan dan Penjelasan RBAC dan RoleBinding

Di episode ini kita akan coba bahas Kubernetes RBAC (Role-Based Access Control) dan RoleBinding untuk authorization. Kita akan mempelajari Role, ClusterRole, RoleBinding, ClusterRoleBinding, dan best practice untuk implementing fine-grained access control.

Arman Dwi Pangestu
Arman Dwi PangestuApril 8, 2026
View CodeSponsor this project
0 views
9 min read

Pendahuluan

Catatan

Untuk kalian yang ingin membaca episode sebelumnya, bisa click thumbnail episode 32 di bawah ini

Episode 32Episode 32

Di episode sebelumnya kita sudah belajar tentang ServiceAccount yang provide identity untuk Pod. Selanjutnya di episode 33 kali ini, kita akan coba bahas RBAC (Role-Based Access Control) dan RoleBinding, yang control apa yang authenticated user dan ServiceAccount bisa lakukan di cluster.

Catatan: Disini saya akan menggunakan Kubernetes Cluster yang di install melalui K3s.

Authentication answer "siapa kalian?" (ServiceAccount), sementara authorization answer "apa yang bisa kalian lakukan?" (RBAC). RBAC enable fine-grained access control, allowing kalian untuk grant specific permission ke user dan application based on principle of least privilege.

Apa Itu RBAC?

RBAC (Role-Based Access Control) adalah Kubernetes authorization mechanism yang regulate access ke cluster resource based on role assigned ke user atau ServiceAccount.

Bayangkan RBAC seperti building security - badge kalian (ServiceAccount) identify kalian, tapi RBAC determine floor mana yang bisa kalian access, pintu mana yang bisa kalian buka, dan action apa yang bisa kalian perform di setiap room.

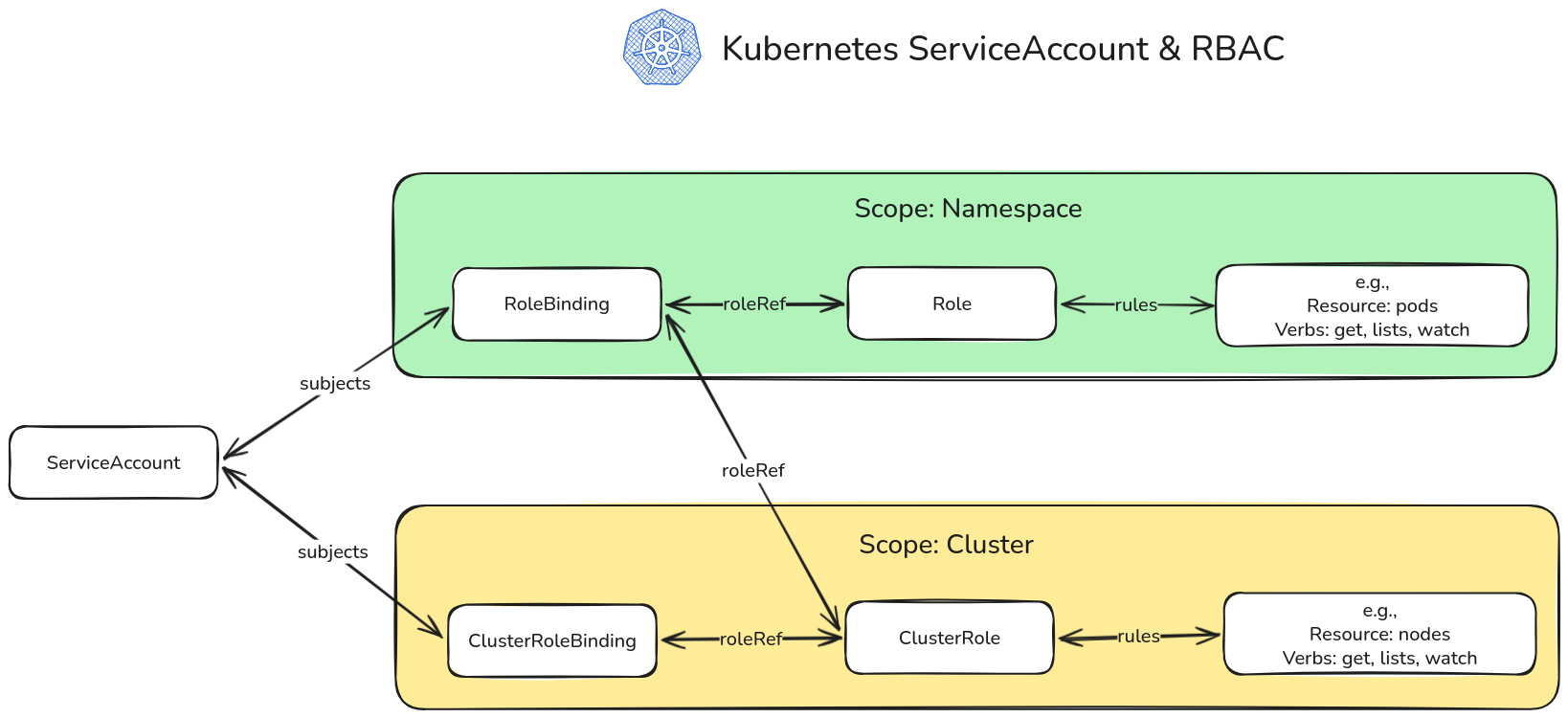

Key RBAC component:

  • Role - Define permission dalam namespace
  • ClusterRole - Define permission cluster-wide
  • RoleBinding - Grant Role permission ke subject di namespace
  • ClusterRoleBinding - Grant ClusterRole permission cluster-wide
  • Subject - User, Group, atau ServiceAccount receiving permission
  • Resource - Kubernetes object (pod, service, etc.)
  • Verb - Action yang bisa performed (get, list, create, etc.)

RBAC Component

Role

Role define permission dalam specific namespace.

Kubernetespod-reader-role.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: pod-reader
    namespace: default
rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list", "watch"]

Karakteristik:

  • Namespace-scoped
  • Define apa yang bisa done
  • Tidak grant permission by itself
  • Need RoleBinding untuk take effect

ClusterRole

ClusterRole define permission cluster-wide atau untuk cluster-scoped resource.

Kubernetesnode-reader-clusterrole.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: node-reader
rules:
    - apiGroups: [""]
      resources: ["nodes"]
      verbs: ["get", "list", "watch"]

Karakteristik:

  • Cluster-wide scope
  • Bisa access cluster-scoped resource (node, namespace)
  • Bisa bound di specific namespace via RoleBinding
  • Bisa bound cluster-wide via ClusterRoleBinding

RoleBinding

RoleBinding grant Role permission ke subject dalam namespace.

Kubernetesread-pods-binding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: read-pods
    namespace: default
subjects:
    - kind: ServiceAccount
      name: my-app-sa
      namespace: default
roleRef:
    kind: Role
    name: pod-reader
    apiGroup: rbac.authorization.k8s.io

Karakteristik:

  • Namespace-scoped
  • Bind Role atau ClusterRole ke subject
  • Subject harus di same namespace (untuk ServiceAccount)
  • Bisa reference ClusterRole untuk namespace-scoped access

ClusterRoleBinding

ClusterRoleBinding grant ClusterRole permission cluster-wide.

Kubernetesread-nodes-binding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
    name: read-nodes
subjects:
    - kind: ServiceAccount
      name: monitoring-sa
      namespace: monitoring
roleRef:
    kind: ClusterRole
    name: node-reader
    apiGroup: rbac.authorization.k8s.io

Karakteristik:

  • Cluster-wide scope
  • Bind ClusterRole ke subject
  • Grant access across semua namespace
  • Gunakan carefully - powerful permission

RBAC Rule

API Group

Kubernetes resource belong ke API group:

Kubernetesyml
rules:
    # Core API group (empty string)
    - apiGroups: [""]
      resources: ["pods", "services", "configmaps"]

    # apps API group
    - apiGroups: ["apps"]
      resources: ["deployments", "statefulsets"]

    # rbac.authorization.k8s.io API group
    - apiGroups: ["rbac.authorization.k8s.io"]
      resources: ["roles", "rolebindings"]

Resource

Kubernetes object yang bisa accessed:

Kubernetesyml
resources:
    - "pods"
    - "services"
    - "deployments"
    - "configmaps"
    - "secrets"
    - "persistentvolumeclaims"

Resource Name

Restrict access ke specific resource instance:

Kubernetesyml
rules:
    - apiGroups: [""]
      resources: ["configmaps"]
      resourceNames: ["app-config", "app-secrets"]
      verbs: ["get", "update"]

Verb

Action yang bisa performed:

Kubernetesyml
verbs:
    - "get"        # Read single resource
    - "list"       # List resource
    - "watch"      # Watch untuk change
    - "create"     # Create new resource
    - "update"     # Update existing resource
    - "patch"      # Partially update resource
    - "delete"     # Delete resource
    - "deletecollection"  # Delete multiple resource

Subresource

Access ke resource subresource:

Kubernetesyml
rules:
    - apiGroups: [""]
      resources: ["pods/log"]
      verbs: ["get"]
    - apiGroups: [""]
      resources: ["pods/exec"]
      verbs: ["create"]

Membuat RBAC Resource

Contoh 1: Read-Only Access ke Pod

Kubernetesreadonly-pods.yml
# Role
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: pod-reader
    namespace: production
rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list", "watch"]
---
# RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: read-pods
    namespace: production
subjects:
    - kind: ServiceAccount
      name: app-reader
      namespace: production
roleRef:
    kind: Role
    name: pod-reader
    apiGroup: rbac.authorization.k8s.io

Contoh 2: Full Access ke Deployment

Kubernetesdeployment-admin.yml
# Role
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: deployment-admin
    namespace: development
rules:
    - apiGroups: ["apps"]
      resources: ["deployments"]
      verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
---
# RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: deployment-admin-binding
    namespace: development
subjects:
    - kind: ServiceAccount
      name: deployer-sa
      namespace: development
roleRef:
    kind: Role
    name: deployment-admin
    apiGroup: rbac.authorization.k8s.io

Contoh 3: Cluster-Wide Read Access

Kubernetescluster-reader.yml
# ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: cluster-reader
rules:
    - apiGroups: [""]
      resources: ["pods", "services", "nodes"]
      verbs: ["get", "list", "watch"]
    - apiGroups: ["apps"]
      resources: ["deployments", "statefulsets"]
      verbs: ["get", "list", "watch"]
---
# ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
    name: cluster-reader-binding
subjects:
    - kind: ServiceAccount
      name: monitoring-sa
      namespace: monitoring
roleRef:
    kind: ClusterRole
    name: cluster-reader
    apiGroup: rbac.authorization.k8s.io

Contoh 4: Multiple Resource dan Verb

Kubernetesapp-manager.yml
# Role
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: app-manager
    namespace: production
rules:
    # Manage Deployment
    - apiGroups: ["apps"]
      resources: ["deployments", "replicasets"]
      verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
    # Manage Service
    - apiGroups: [""]
      resources: ["services"]
      verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
    # Read ConfigMap dan Secret
    - apiGroups: [""]
      resources: ["configmaps", "secrets"]
      verbs: ["get", "list"]
    # View Pod dan log
    - apiGroups: [""]
      resources: ["pods", "pods/log"]
      verbs: ["get", "list", "watch"]
---
# RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: app-manager-binding
    namespace: production
subjects:
    - kind: ServiceAccount
      name: app-manager-sa
      namespace: production
roleRef:
    kind: Role
    name: app-manager
    apiGroup: rbac.authorization.k8s.io

Built-in ClusterRole

Kubernetes provide default ClusterRole:

view

Read-only access ke most resource:

Kubernetesbash
kubectl get clusterrole view -o yaml

Permission:

  • Read pod, service, deployment, etc.
  • Tidak bisa read secret
  • Tidak bisa modify resource

edit

Read-write access ke most resource:

Kubernetesbash
kubectl get clusterrole edit -o yaml

Permission:

  • Semua view permission
  • Create, update, delete resource
  • Tidak bisa modify role atau rolebinding

admin

Full access dalam namespace:

Kubernetesbash
kubectl get clusterrole admin -o yaml

Permission:

  • Semua edit permission
  • Manage role dan rolebinding
  • Tidak bisa modify namespace itself

cluster-admin

Full cluster access:

Kubernetesbash
kubectl get clusterrole cluster-admin -o yaml

Permission:

  • Unrestricted access ke semua resource
  • Bisa perform any action
  • Gunakan dengan extreme caution

Menggunakan Built-in Role

Kubernetesuse-builtin-role.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: developer-view
    namespace: development
subjects:
    - kind: ServiceAccount
      name: developer-sa
      namespace: development
roleRef:
    kind: ClusterRole
    name: view  # Built-in ClusterRole
    apiGroup: rbac.authorization.k8s.io

Aggregated ClusterRole

Combine multiple ClusterRole:

Kubernetesaggregated-role.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: monitoring-role
aggregationRule:
    clusterRoleSelectors:
        - matchLabels:
              rbac.example.com/aggregate-to-monitoring: "true"
rules: []  # Rule automatically filled by aggregation
---
# Component role 1
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: monitoring-pods
    labels:
        rbac.example.com/aggregate-to-monitoring: "true"
rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list", "watch"]
---
# Component role 2
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: monitoring-nodes
    labels:
        rbac.example.com/aggregate-to-monitoring: "true"
rules:
    - apiGroups: [""]
      resources: ["nodes"]
      verbs: ["get", "list", "watch"]

Testing RBAC

Check Permission

Kubernetesbash
# Check jika kalian bisa perform action
kubectl auth can-i create deployments

# Check untuk specific user/ServiceAccount
kubectl auth can-i get pods --as=system:serviceaccount:default:my-app-sa

# Check di specific namespace
kubectl auth can-i delete services --namespace=production

# List semua permission
kubectl auth can-i --list
kubectl auth can-i --list --as=system:serviceaccount:default:my-app-sa

Impersonate User

Kubernetesbash
# Run command as ServiceAccount
kubectl get pods --as=system:serviceaccount:default:my-app-sa

# Run command as user
kubectl get pods --as=john@example.com

Contoh Praktis

Contoh 1: CI/CD Pipeline ServiceAccount

Kubernetescicd-rbac.yml
# ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
    name: cicd-deployer
    namespace: default
---
# Role - Deploy application
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: deployer-role
    namespace: production
rules:
    # Manage Deployment
    - apiGroups: ["apps"]
      resources: ["deployments"]
      verbs: ["get", "list", "create", "update", "patch"]
    # Manage Service
    - apiGroups: [""]
      resources: ["services"]
      verbs: ["get", "list", "create", "update", "patch"]
    # Manage ConfigMap
    - apiGroups: [""]
      resources: ["configmaps"]
      verbs: ["get", "list", "create", "update", "patch"]
    # Read Pod (untuk status checking)
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list", "watch"]
---
# RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: cicd-deployer-binding
    namespace: production
subjects:
    - kind: ServiceAccount
      name: cicd-deployer
      namespace: default
roleRef:
    kind: Role
    name: deployer-role
    apiGroup: rbac.authorization.k8s.io

Contoh 2: Developer Access

Kubernetesdeveloper-rbac.yml
# ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
    name: developer
    namespace: development
---
# Role - Development environment access
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
    name: developer-role
    namespace: development
rules:
    # Full access ke Deployment
    - apiGroups: ["apps"]
      resources: ["deployments", "replicasets"]
      verbs: ["*"]
    # Full access ke Service
    - apiGroups: [""]
      resources: ["services"]
      verbs: ["*"]
    # Full access ke ConfigMap
    - apiGroups: [""]
      resources: ["configmaps"]
      verbs: ["*"]
    # Read-only Secret
    - apiGroups: [""]
      resources: ["secrets"]
      verbs: ["get", "list"]
    # Pod management
    - apiGroups: [""]
      resources: ["pods", "pods/log", "pods/exec"]
      verbs: ["get", "list", "watch", "create", "delete"]
---
# RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: developer-binding
    namespace: development
subjects:
    - kind: ServiceAccount
      name: developer
      namespace: development
roleRef:
    kind: Role
    name: developer-role
    apiGroup: rbac.authorization.k8s.io

Contoh 3: Monitoring System

Kubernetesmonitoring-rbac.yml
# ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
    name: prometheus
    namespace: monitoring
---
# ClusterRole - Read metric cluster-wide
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
    name: prometheus-role
rules:
    # Read node
    - apiGroups: [""]
      resources: ["nodes", "nodes/metrics", "nodes/stats"]
      verbs: ["get", "list", "watch"]
    # Read pod
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list", "watch"]
    # Read service
    - apiGroups: [""]
      resources: ["services", "endpoints"]
      verbs: ["get", "list", "watch"]
    # Read metric
    - apiGroups: ["metrics.k8s.io"]
      resources: ["nodes", "pods"]
      verbs: ["get", "list"]
---
# ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
    name: prometheus-binding
subjects:
    - kind: ServiceAccount
      name: prometheus
      namespace: monitoring
roleRef:
    kind: ClusterRole
    name: prometheus-role
    apiGroup: rbac.authorization.k8s.io

Contoh 4: Namespace Admin

Kubernetesnamespace-admin-rbac.yml
# ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
    name: namespace-admin
    namespace: production
---
# RoleBinding - Gunakan built-in admin role
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
    name: namespace-admin-binding
    namespace: production
subjects:
    - kind: ServiceAccount
      name: namespace-admin
      namespace: production
roleRef:
    kind: ClusterRole
    name: admin  # Built-in ClusterRole
    apiGroup: rbac.authorization.k8s.io

Kesalahan Umum dan Pitfall

Kesalahan 1: Granting cluster-admin

Problem: Giving cluster-admin ke everyone.

Kubernetesyml
# Bad: Terlalu permissive
roleRef:
    kind: ClusterRole
    name: cluster-admin

Solusi: Grant minimum necessary permission:

Kubernetesyml
# Good: Specific permission
roleRef:
    kind: ClusterRole
    name: view

Kesalahan 2: Menggunakan ClusterRoleBinding untuk Namespace Access

Problem: Granting cluster-wide access ketika namespace access sufficient.

Kubernetesyml
# Bad: Cluster-wide access
kind: ClusterRoleBinding

Solusi: Gunakan RoleBinding untuk namespace-scoped access:

Kubernetesyml
# Good: Namespace-scoped
kind: RoleBinding
metadata:
    namespace: production

Kesalahan 3: Wildcard Permission

Problem: Menggunakan wildcard (*) untuk everything.

Kubernetesyml
# Bad: Terlalu broad
rules:
    - apiGroups: ["*"]
      resources: ["*"]
      verbs: ["*"]

Solusi: Be specific:

Kubernetesyml
# Good: Specific permission
rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list"]

Kesalahan 4: Tidak Testing Permission

Problem: Deploying RBAC tanpa testing.

Solusi: Selalu test:

Kubernetesbash
kubectl auth can-i get pods --as=system:serviceaccount:default:my-app-sa

Kesalahan 5: Lupa API Group

Problem: Wrong atau missing API group.

Kubernetesyml
# Bad: Missing API group untuk deployment
rules:
    - apiGroups: [""]  # Wrong! Deployment ada di "apps"
      resources: ["deployments"]

Solusi: Gunakan correct API group:

Kubernetesyml
# Good: Correct API group
rules:
    - apiGroups: ["apps"]
      resources: ["deployments"]

Best Practice

Principle of Least Privilege

Grant hanya necessary permission:

Kubernetesyml
# Minimal permission
rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["get", "list"]  # Hanya yang needed

Gunakan Namespace-Scoped Role

Prefer Role over ClusterRole:

Kubernetesyml
# Good: Namespace-scoped
kind: Role
metadata:
    namespace: production

Leverage Built-in Role

Gunakan view, edit, admin ketika appropriate:

Kubernetesyml
roleRef:
    kind: ClusterRole
    name: view  # Built-in role

Document RBAC Policy

Kubernetesyml
metadata:
    name: app-manager
    annotations:
        description: "Manage application di production namespace"
        permissions: "deployments, services, configmaps"

Regular Audit

Review RBAC regularly:

Kubernetesbash
# List semua RoleBinding
kubectl get rolebindings --all-namespaces

# List semua ClusterRoleBinding
kubectl get clusterrolebindings

# Check specific permission
kubectl auth can-i --list --as=system:serviceaccount:default:my-app-sa

Separate Role by Function

Kubernetesyml
# Reader role
kind: Role
name: pod-reader

# Writer role
kind: Role
name: pod-writer

# Admin role
kind: Role
name: pod-admin

Melihat RBAC Resource

Get Role

Kubernetesbash
kubectl get roles
kubectl get roles --all-namespaces
kubectl get clusterroles

Get RoleBinding

Kubernetesbash
kubectl get rolebindings
kubectl get rolebindings --all-namespaces
kubectl get clusterrolebindings

Describe RBAC Resource

Kubernetesbash
kubectl describe role pod-reader
kubectl describe rolebinding read-pods
kubectl describe clusterrole view
kubectl describe clusterrolebinding cluster-admin

View RBAC YAML

Kubernetesbash
kubectl get role pod-reader -o yaml
kubectl get rolebinding read-pods -o yaml

Menghapus RBAC Resource

Kubernetesbash
# Delete Role
kubectl delete role pod-reader

# Delete RoleBinding
kubectl delete rolebinding read-pods

# Delete ClusterRole
kubectl delete clusterrole custom-role

# Delete ClusterRoleBinding
kubectl delete clusterrolebinding custom-binding

Penutup

Pada episode 33 ini, kita telah membahas RBAC dan RoleBinding di Kubernetes secara mendalam. Kita sudah belajar cara implement fine-grained access control menggunakan Role, ClusterRole, RoleBinding, dan ClusterRoleBinding.

Key takeaway:

  • RBAC control apa yang authenticated subject bisa lakukan
  • Role define namespace-scoped permission
  • ClusterRole define cluster-wide permission
  • RoleBinding grant Role ke subject di namespace
  • ClusterRoleBinding grant ClusterRole cluster-wide
  • Rule specify apiGroup, resource, dan verb
  • Verb include get, list, watch, create, update, delete
  • Built-in role: view, edit, admin, cluster-admin
  • Gunakan principle of least privilege
  • Prefer Role over ClusterRole ketika possible
  • Test permission dengan kubectl auth can-i
  • Document RBAC policy
  • Regular audit permission
  • Avoid cluster-admin kecuali necessary
  • Separate role by function

RBAC fundamental untuk Kubernetes security. Dengan memahami dan properly implementing RBAC, kalian bisa ensure secure, controlled access ke cluster resource, protecting application dan data dari unauthorized access.

Bagaimana, makin jelas kan tentang RBAC dan RoleBinding di Kubernetes? Jadi, pastikan tetap semangat belajar dan nantikan episode selanjutnya!

Catatan

Untuk kalian yang ingin melanjutkan ke episode selanjutnya, bisa click thumbnail episode 34 di bawah ini

Episode 34Episode 34

Related Posts
